PL519-1Y01-2

Features |
---|

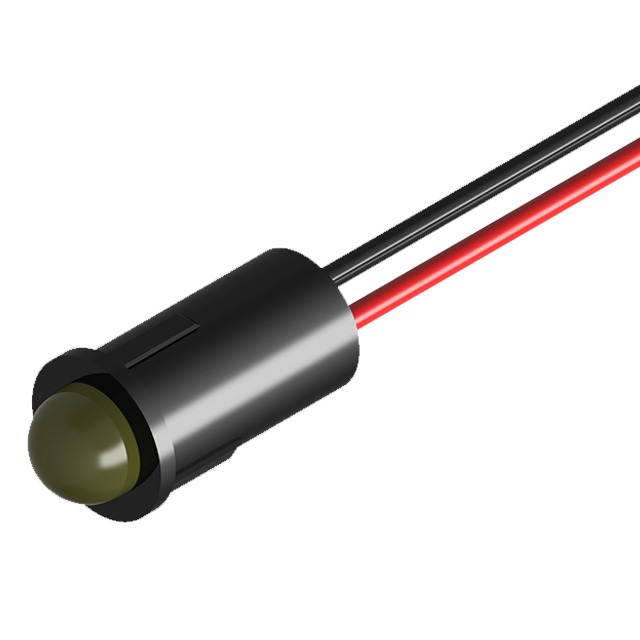

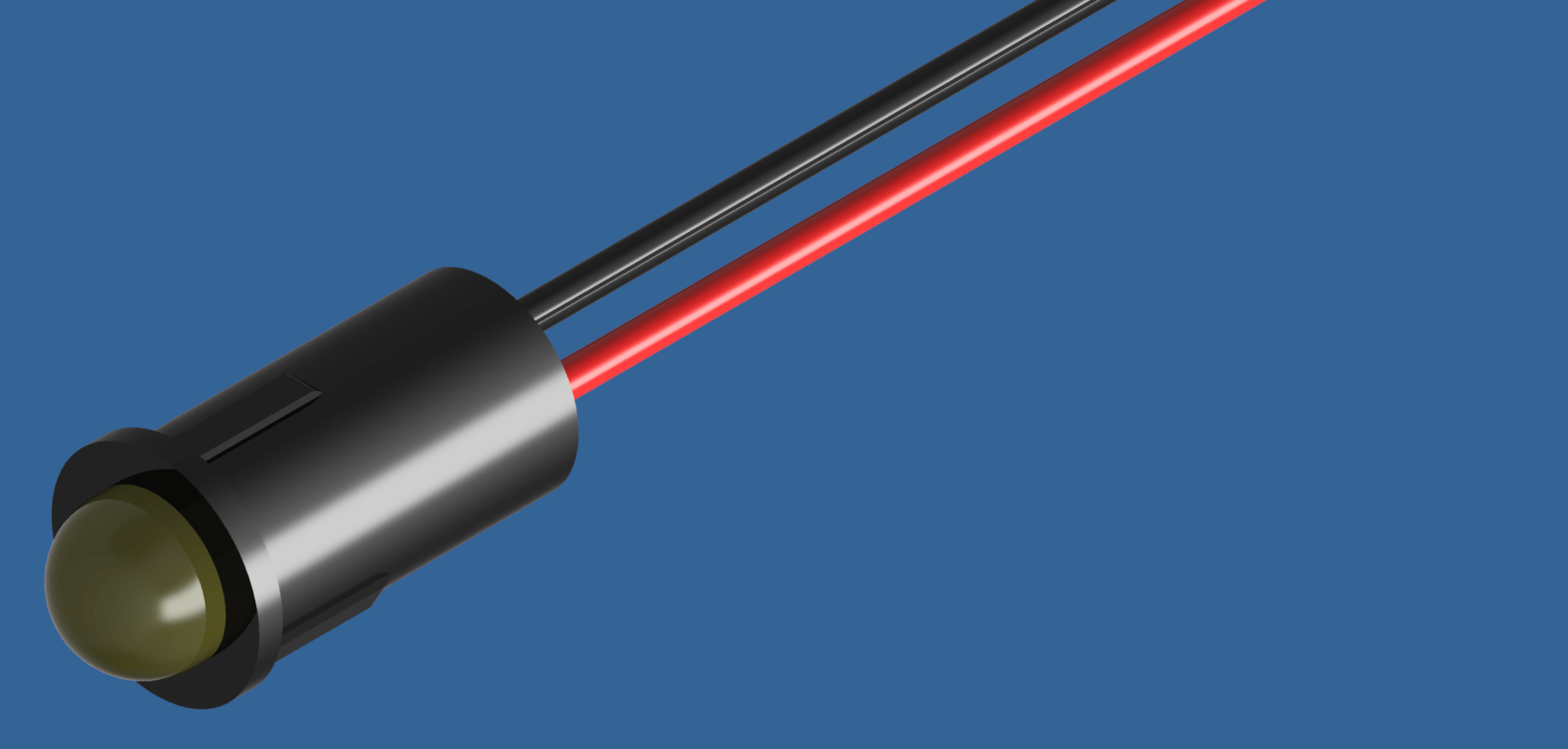

5mm Snap-In Panel Mount Indicator LED w/ 6" Wire Leads |
Chip Material: GaAsP |
Black Nylon UL94V-2 Housing Material |
RoHS Compliant |
Manufactured in USA |
PL519-1Y01-2 Datasheet |
Specifications
Product Attribute | Attribute Value |
---|---|
Led Size | 5mm |
Mounting Style | Snap-In |
Holder Finish | Black Nylon |
Termination Style | Wire |
Wire Length | 6" |
Illumination Color | Yellow |
Wavelength | 590nm |
Luminous Intensity | 3 mcd |
Lens Type | Color Diffused |
Forward Current | 20mA |
Forward Voltage | 2.1 V |
