PL523-1G13-2B

Features

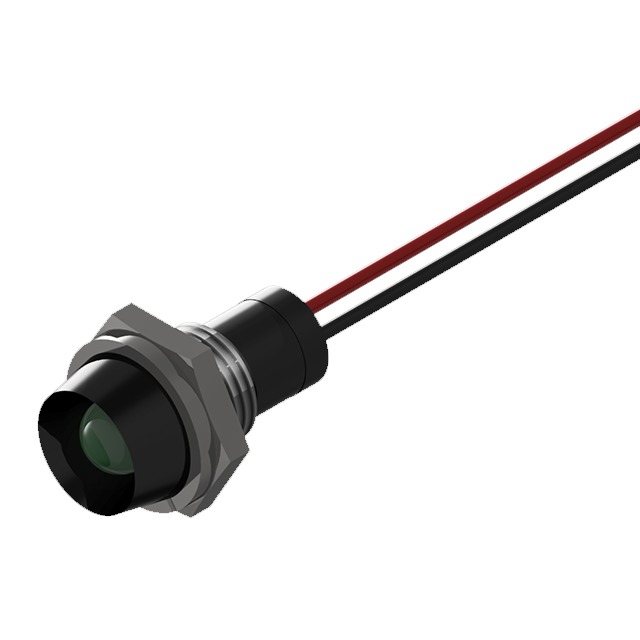

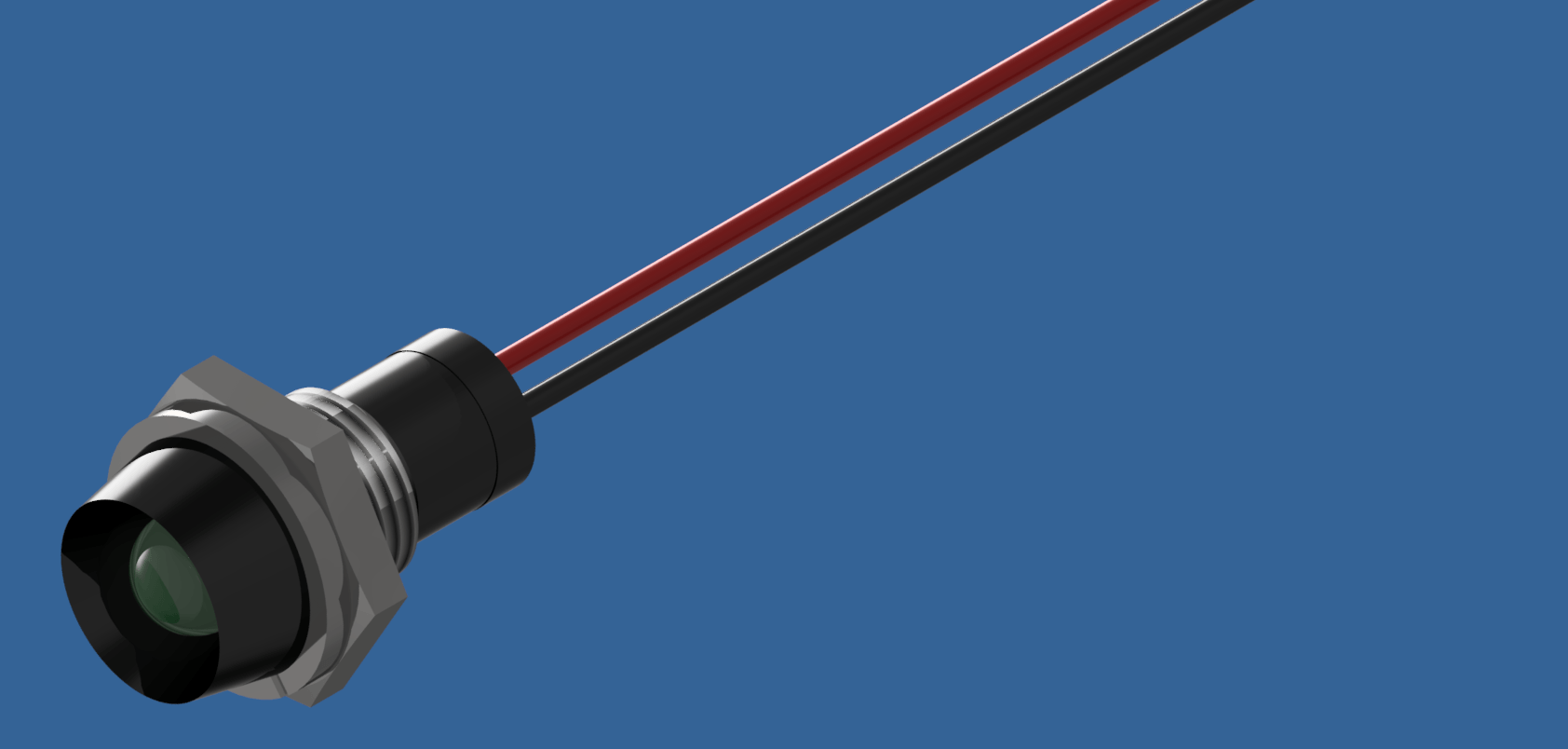

5mm Bolt-In Panel Mount Indicator LED w/ 6" Wire Leads
Chip Material: GaP
RoHS Compliant
Manufactured in USA
PL523-1G13-2B Datasheet

Specifications

Product Attribute Attribute Value
Led Size 5mm
Mounting Style Nut & Washer
Holder Finish Black
Termination Style Wire
Wire Length 6"
Illumination Color Green
Wavelength 572nm
Luminous Intensity 3 mcd
Lens Type Color Diffused
Forward Current 20mA
Forward Voltage 2.1 V
