PL321-1Y01-2S

Features |
---|

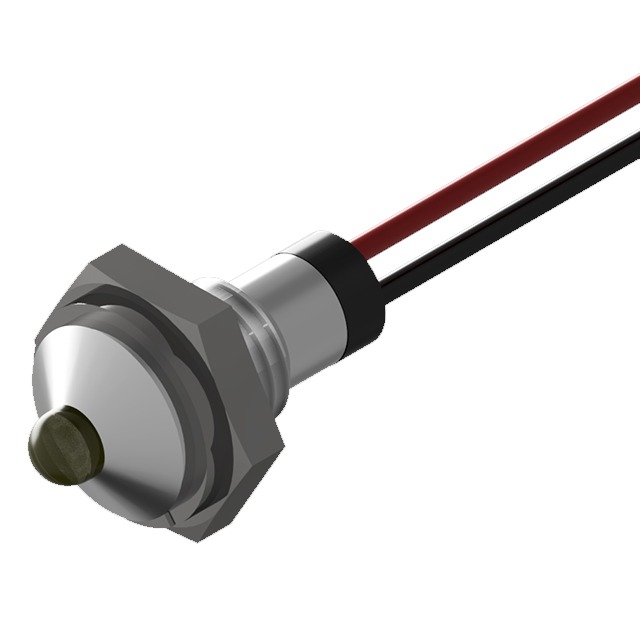

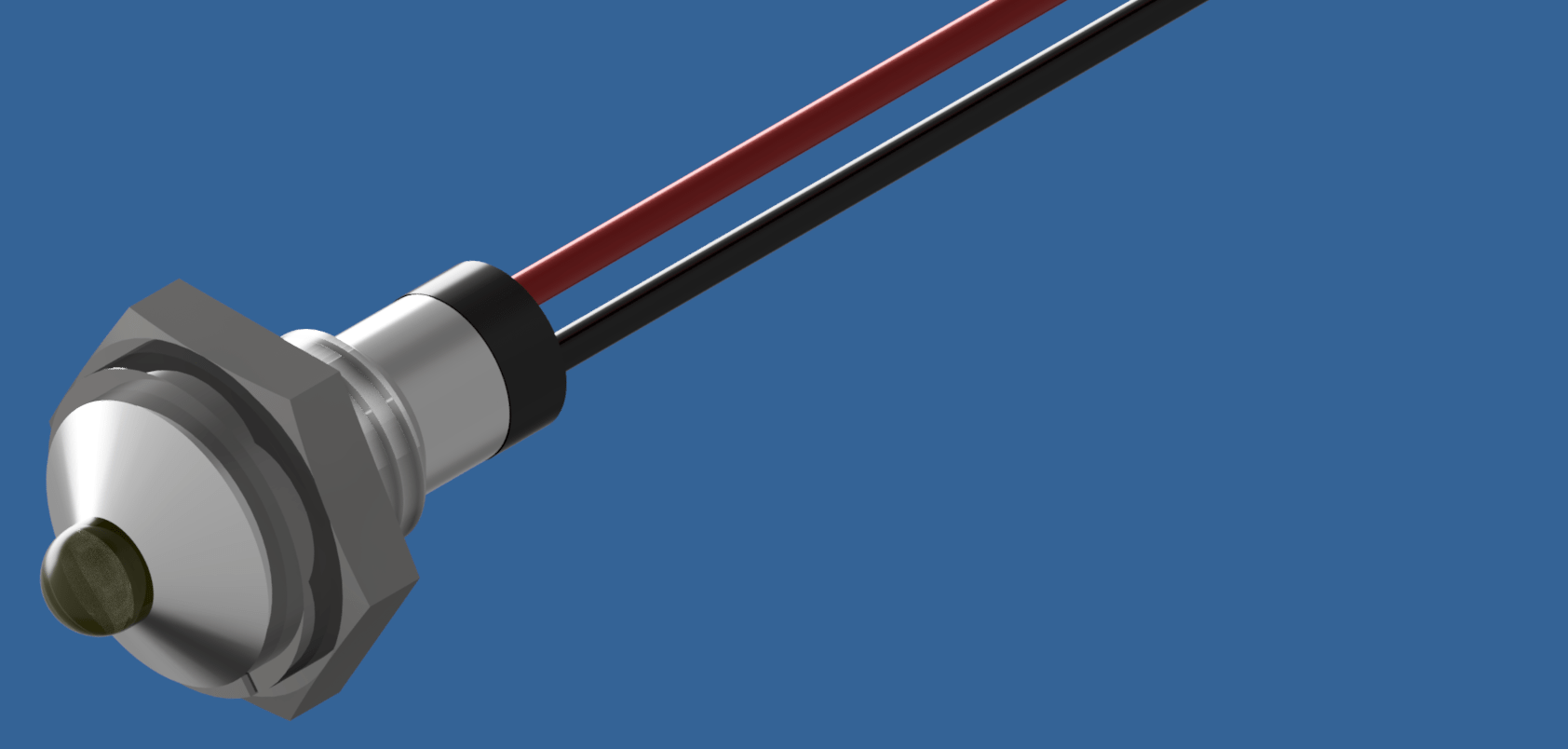

3mm Bolt-In Panel Mount Indicator LED w/ 6" Wire Leads |
Chip Material: GaAsP |
RoHS Compliant |
Manufactured in USA |
PL321-1Y01-2S Datasheet |
Specifications
Product Attribute | Attribute Value |
---|---|
Led Size | 3mm |
Mounting Style | Nut & Washer |
Holder Finish | Chrome |
Termination Style | Wire |
Wire Length | 6" |
Illumination Color | Yellow |
Wavelength | 590nm |
Luminous Intensity | 3 mcd |
Lens Type | Color Diffused |
Forward Current | 20mA |
Forward Voltage | 2.1 V |
