PL103-1G1Y1G130113

PL103_1G1Y1G
Features

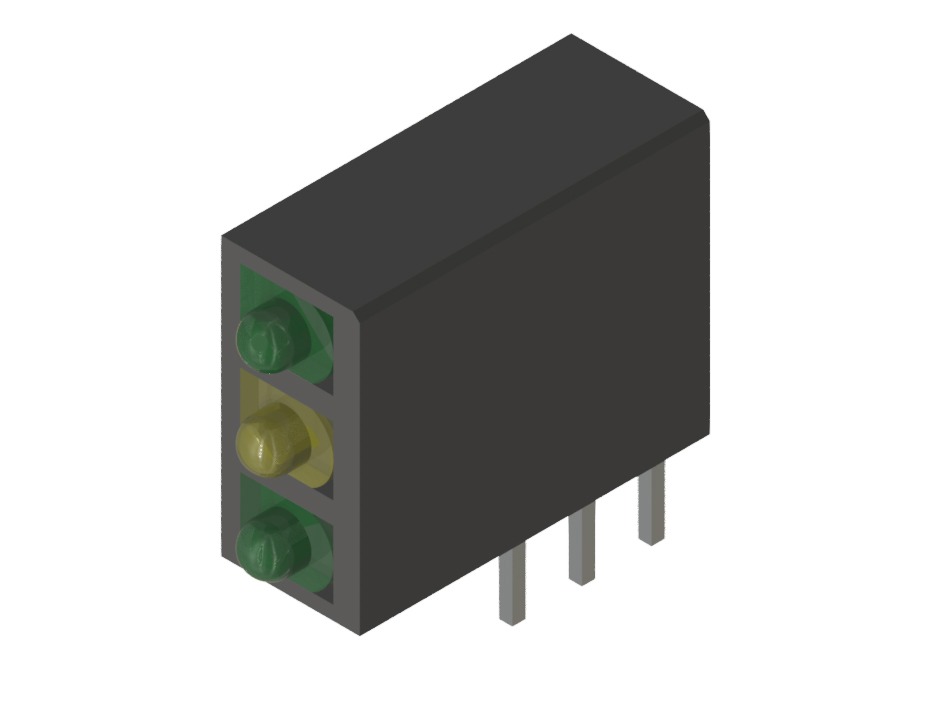

Tri-Level 1.8mm Right Angle Circuit Board Indicator LED
1 Green, 1 Yellow, 1 Green LED (Arranged Top to Bottom)
Housing Material Black Nylon UL94V-2
RoHS Compliant
PL103-1G1Y1G130113 Datasheet

Specifications

Product Attribute Attribute Value
LED Size 1.8mm
Holder Size 12.80 x 5.08 x 10.16mm
Configuration Tri Level
Illumination Color 1 Green / 1 Yellow / 1 Green
Wavelength 572nm / 590nm / 572nm
Luminous Intensity 45 / 37 / 45mcd
Lens Type Color Diffused
Forward Current 20mA
